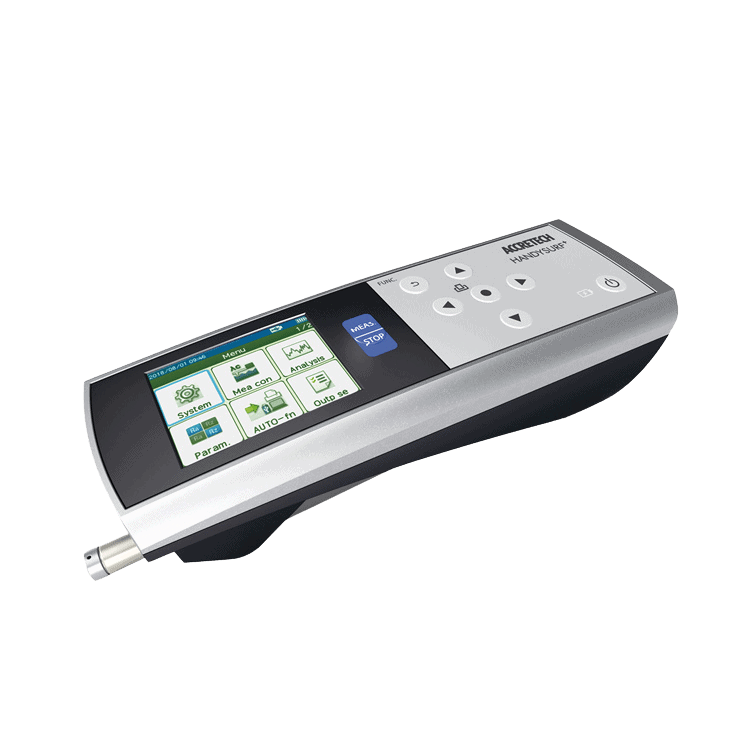

✨ HANDYSURF+ – Ultimate Precision in the Palm of Your Hand
🔍 Outstanding Features
HANDYSURF+ is a cutting-edge portable surface roughness measuring device from the leading Japanese brand Tokyo Seimitsu (Accretech). With its compact design, multifunctionality, and ease of use, it is suitable for various working environments—from factories and production floors to laboratories.
📌 Key Technical Specifications
-
Z-Axis Resolution: 0.0007 µm
-
Z-Axis Measuring Range: +160 µm to -210 µm (widest in its class)
-
Evaluation Length: 0.2 mm ~ 16 mm
-
Measuring Speed: 0.5 / 0.6 / 0.75 / 1.0 mm/s
-
Display: 2.4-inch color LCD for clear and easy operation
🖥️ User-Friendly Interface
-
Intuitive color screen with a new 6-button navigation layout
-
Easy selection of measurement standards: JIS / ISO / ASME / CNOMO
-
Automatic OK/NG judgment, waveform display, and analytical curves (BAC, ADC, etc.)
🧪 Measurement Result Display Example
-
Clearly displays Ra, Rz, Rt, and other key values
-
Zoom function, curve analysis, and direct data export available
🧰 Connection Interfaces and Included Accessories
-
USB ports for connection to printer, external memory, or PC
-
Capable of storing up to 1000 measurement results and 500 measurement conditions
-
Options to save, back up, and read data directly via USB
🛠️ Wide Range of Probes and Accessories (Optional)
-
Probes for small holes, deep grooves, horizontal measurements
-
Compatible with magnetic stands, height gauges, or handheld operation
🌍 Multilingual Support
Supports 20 languages including: Japanese, English, Chinese, Korean, Thai, Vietnamese, German, French, Italian, and Spanish.
